Setup GCP Workload Identity Pool for Github Workflow Integration

This setup guide will show you how to setup GCP Workload Identity Pool to allow Github Workflow to access GCP resources securely via OIDC.

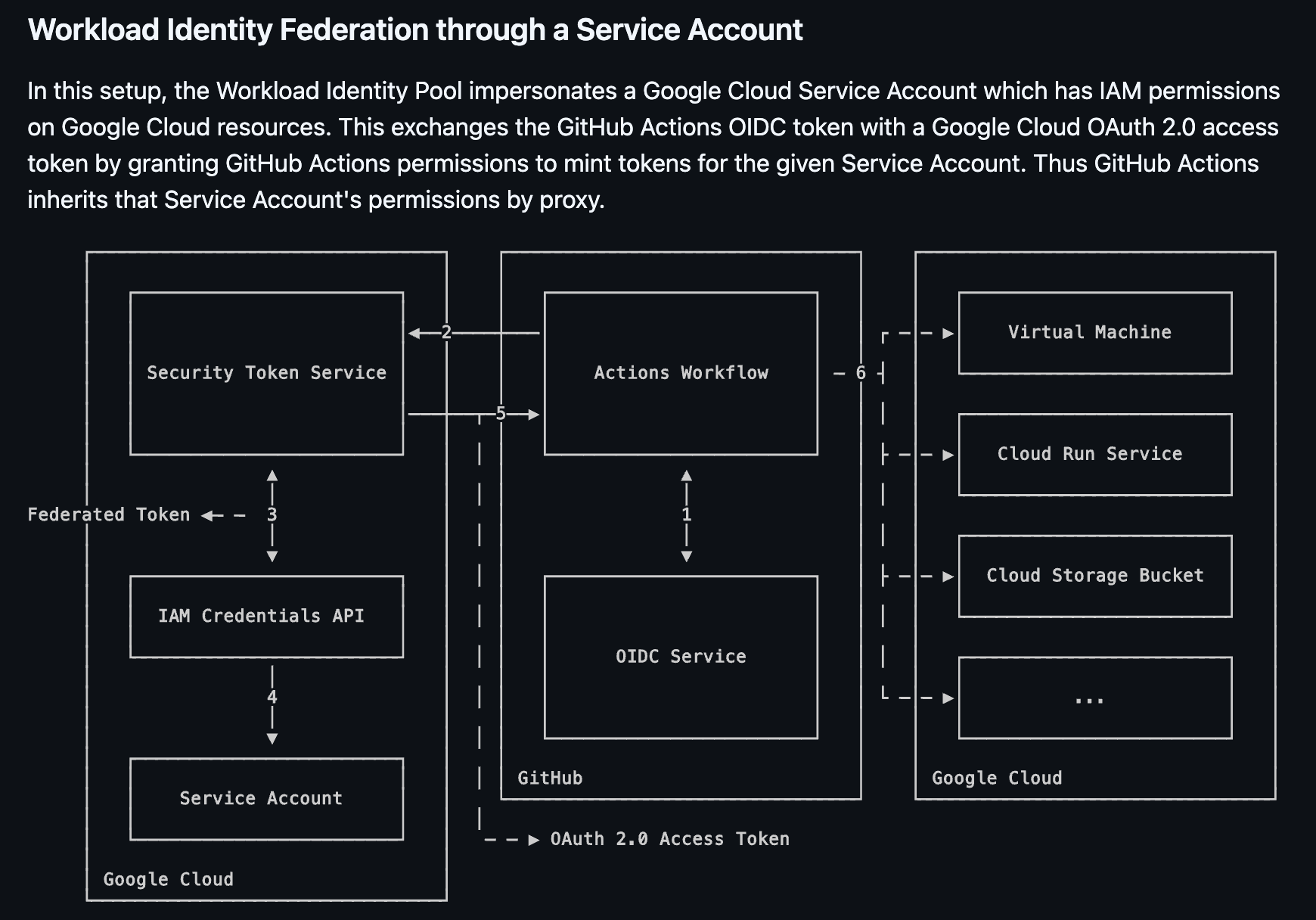

workflow

From: https://github.com/google-github-actions/auth?tab=readme-ov-file#workload-identity-federation-through-a-service-account

OIDC Step-by-Step Flow

Step 1: Request OIDC Token

The Actions Workflow requests an OIDC token from GitHub’s OIDC Service
This token contains claims about the workflow (repository, branch, actor, etc.)

Step 2: Workflow Gets OIDC Token

GitHub’s OIDC Service generates and returns the OIDC token to the Actions Workflow
This token proves the workflow’s identity

Step 3: Exchange for Federated Token

The workflow sends the GitHub OIDC token to GCP’s IAM Credentials API
The Security Token Service validates the OIDC token against the configured Workload Identity Pool
If valid, it returns a Federated Token (a GCP-recognized credential)

Step 4: Get Service Account Access Token

The workflow uses the Federated Token to request an access token from the IAM Credentials API
The IAM service checks if the Workload Identity Pool principal has workloadIdentityUser permission on the Service Account
If authorized, it returns an OAuth 2.0 Access Token for the Service Account

Step 5: Authenticate as Service Account

The workflow receives the OAuth 2.0 Access Token
This token represents the Service Account’s identity

Step 6: Access GCP Resources

The workflow uses the Service Account’s access token to authenticate to GCP services
Based on the Service Account’s IAM permissions (viewer, storage.admin, etc.), it can now access:
- Virtual Machines
- Cloud Run Services
- Cloud Storage Buckets
- Other GCP resources

Setup Guide

This can be done via Console or gcloud cli

Create an iam workload identity pool

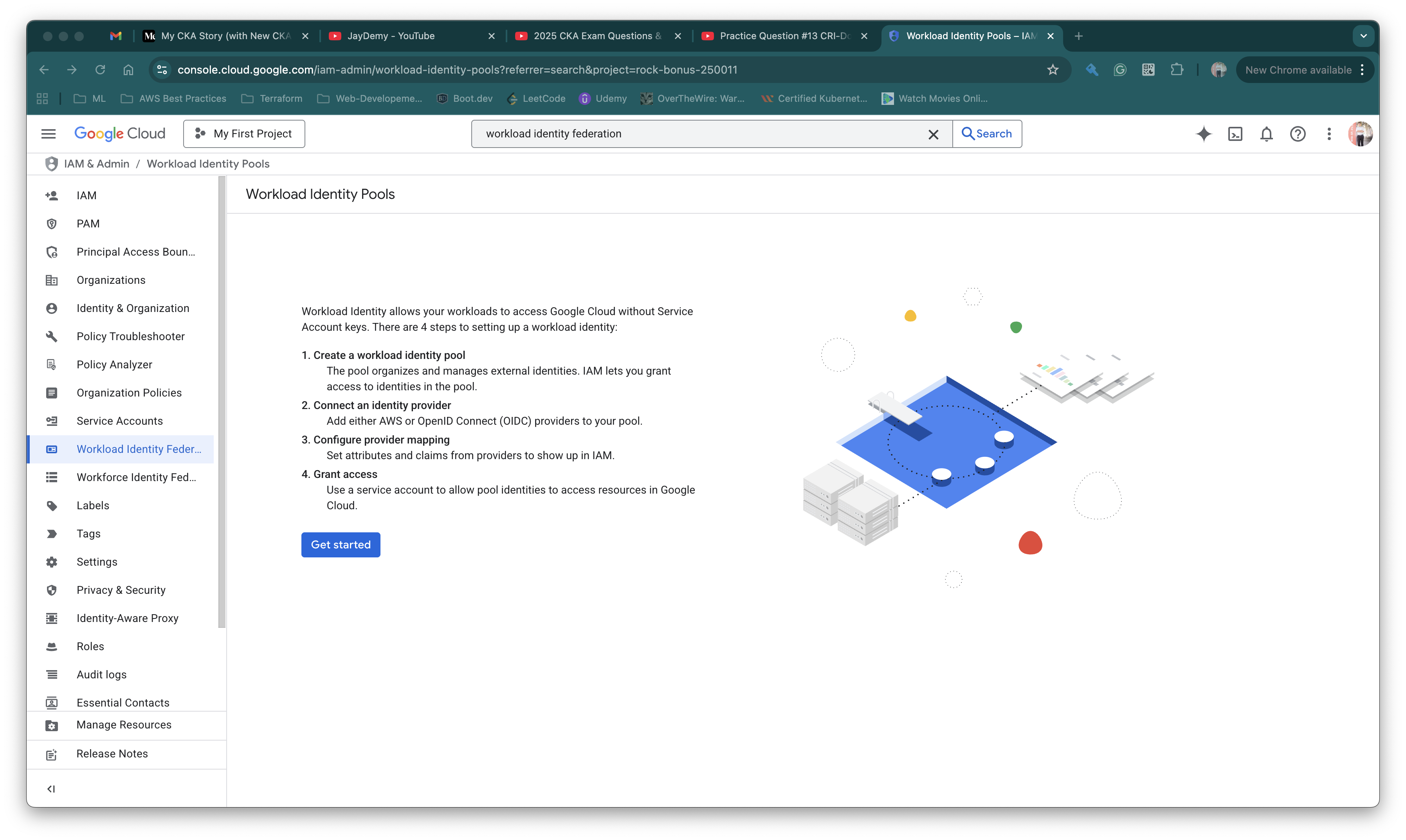

create-workload-identity-pool

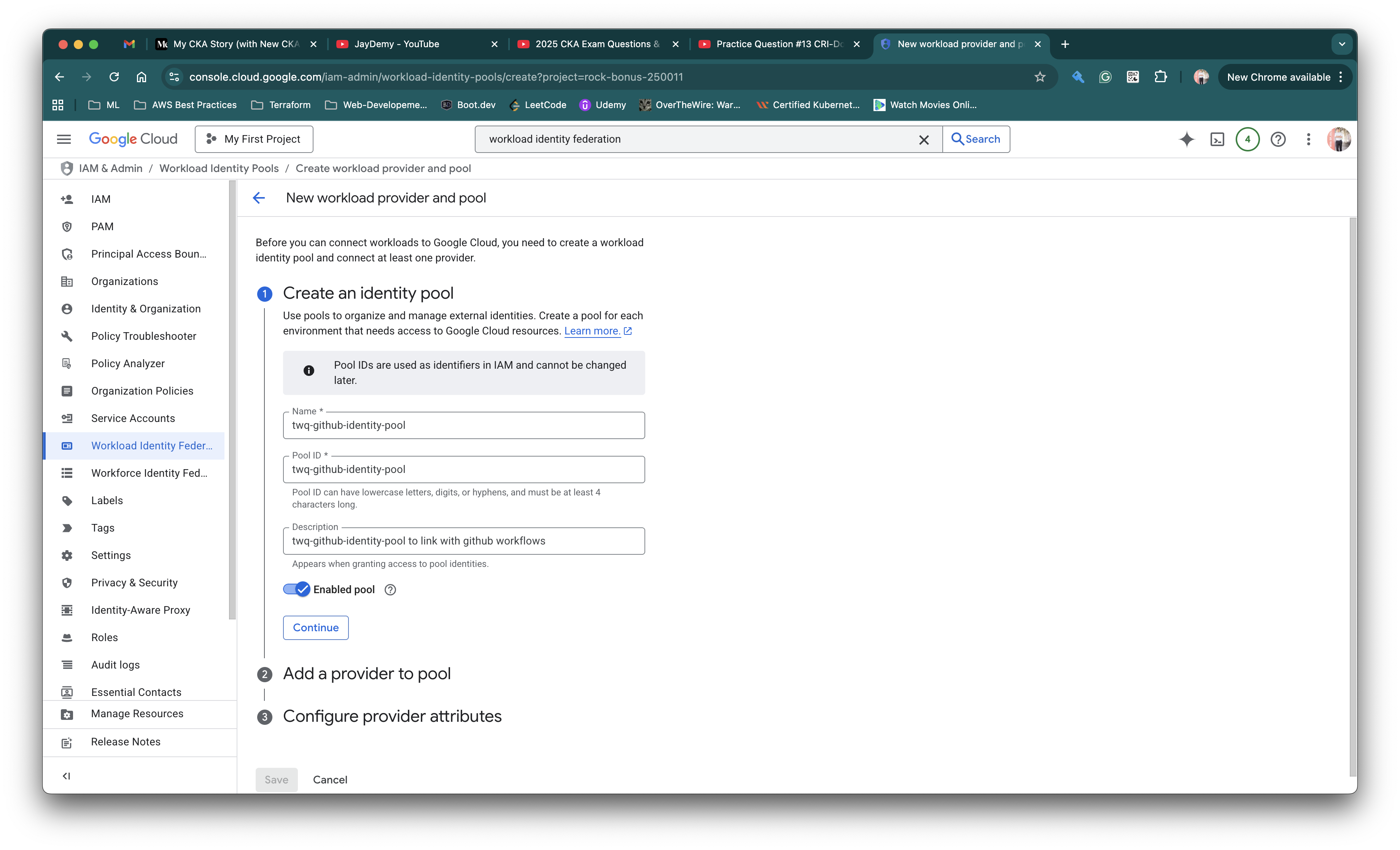

create-workload-identity-pool-2

# Configure in console or use gcloud cli below
gcloud iam workload-identity-pools create "twq-github-identity-pool" \
--project="rock-bonus-250011" \
--location="global" \
--display-name="twq-github-identity-pool"

Add providers into IAM workload identity provider

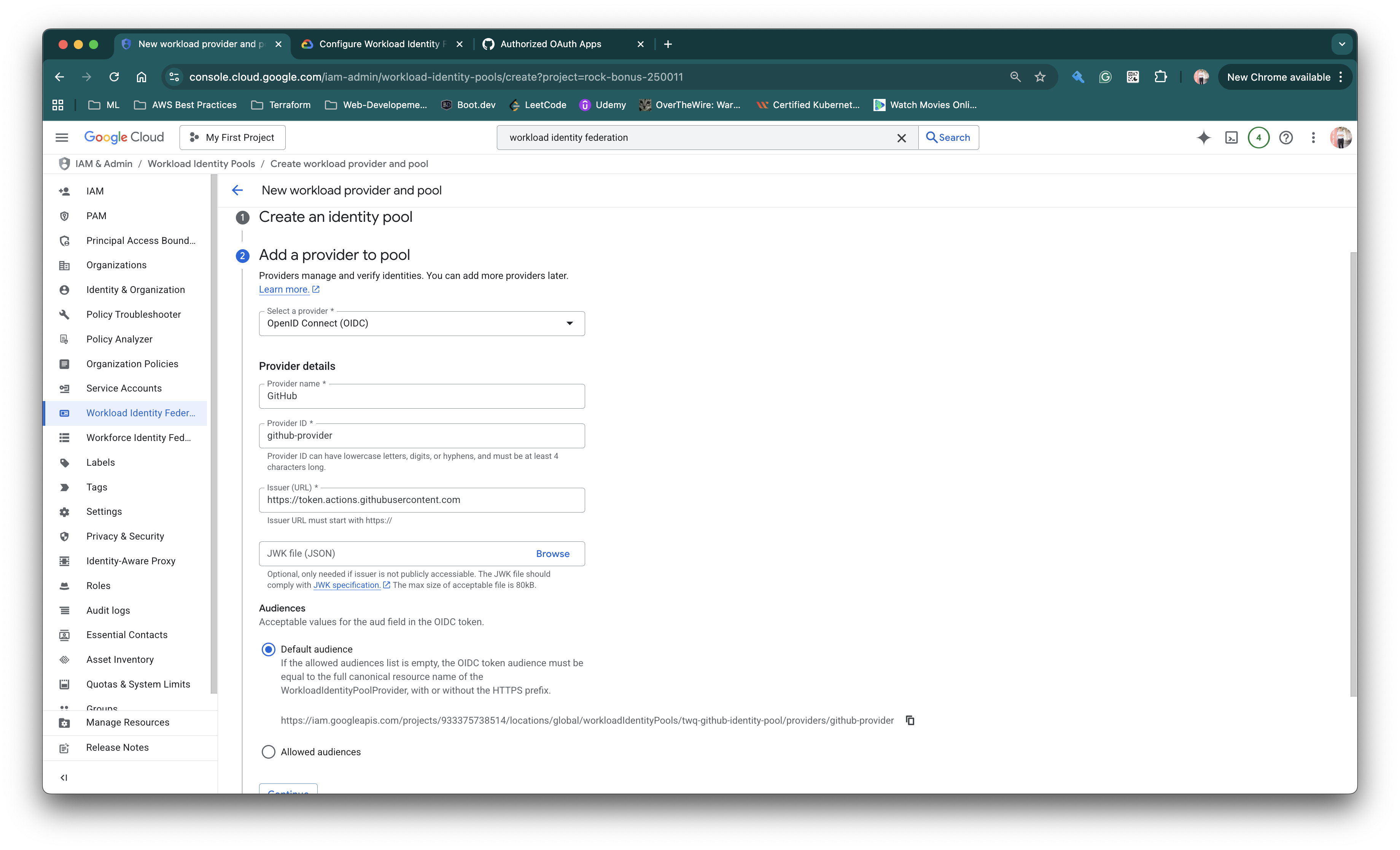

add-provider-to-workload-identity-pool

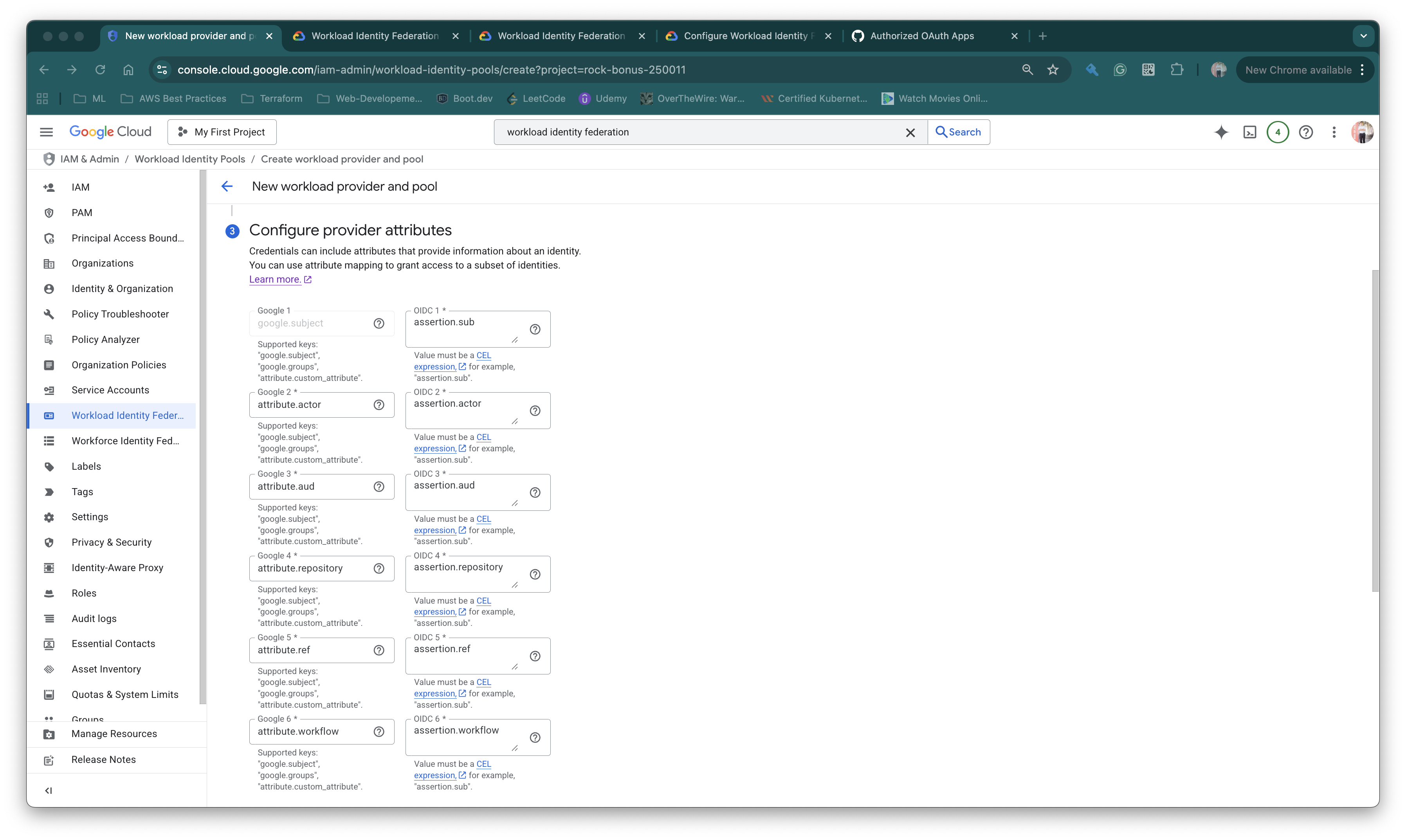

configure-provider-attributes

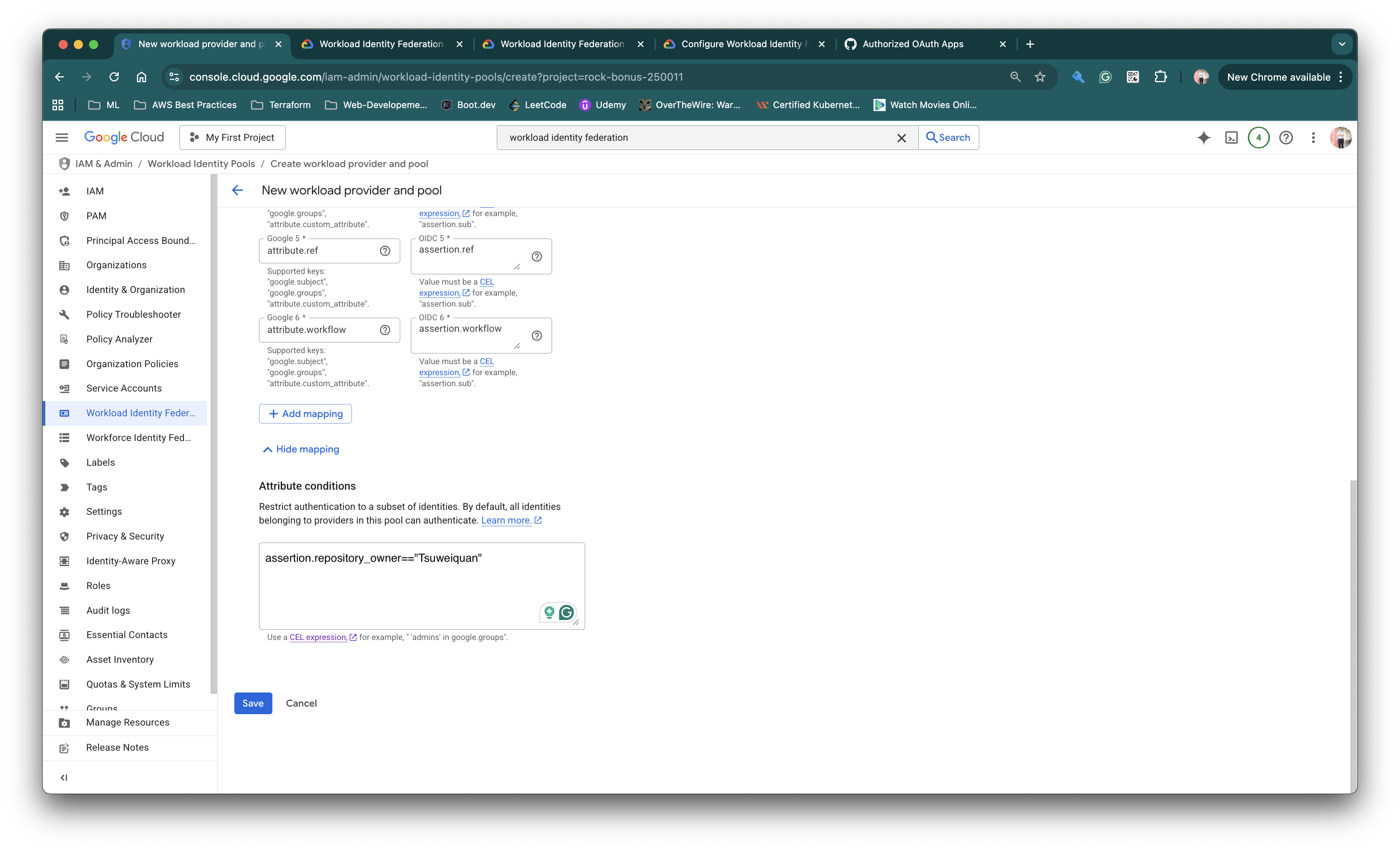

configure-provider-attributes-conditions

# Configure in console or use gcloud cli below
gcloud iam workload-identity-pools providers create-oidc "github-provider" \
--project="rock-bonus-250011" \
--location="global" \
--workload-identity-pool="twq-github-identity-pool" \
--display-name="twq-github-identity-pool" \
--attribute-mapping="google.subject=assertion.sub,attribute.actor=assertion.actor,attribute.aud=assertion.aud, attribute.repository=assertion.repository, attribute.ref=assertion.ref,attribute.workflow=assertion.workflow" \
--issuer-uri="https://token.actions.githubusercontent.com" \
--attribute-condition="assertion.repository_owner=='Tsuweiquan'"

google.subject=assertion.sub

google.subject: Required attribute. The unique identifier for the identity in GCP
assertion.sub: The sub (subject) claim from GitHub’s OIDC token. For GitHub Actions, this typically contains the repo and workflow info (e.g., repo:myorg/myrepo:ref:refs/heads/main)

attribute.actor=assertion.actor

attribute.actor: Custom attribute you’re creating in GCP
assertion.actor: The actor claim from GitHub’s token, which contains the username of the person/bot that triggered the workflow

attribute.aud=assertion.aud

attribute.aud: Custom attribute for audience
assertion.aud: The aud (audience) claim from the token

attribute.repository=assertion.repository

attribute.repository: Custom attribute for audience
assertion.repository: Full repository name

attribute.ref=assertion.ref

attribute.ref: Custom attribute for audience
assertion.ref: Git ref that triggered the workflow

attribute.workflow=assertion.workflow

attribute.workflow: Custom attribute for audience
assertion.workflow: Restrict to specific workflow files

All these can be obtained from https://docs.github.com/en/actions/reference/security/oidc

# Attribute conditions
# This is to allow only repos belonging to "Tsuweiquan" owner to be able to use the provider
# THIS IS CASE SENSITIVE!!!
assertion.repository_owner=="Tsuweiquan"

Flow:

When Github generates an OIDC token it will contain all the attributes in the JWT token.
We selectively declares these attributes in GCP Workload Identity, so GCP only consume these attributes. With these attributes, GCP can use it to check if it’s allowed in the IAM policies before allowing access to GCP services.
Unmapped attributes are ignored. There are many **Custom claims provided by GitHub** that I did not map above for now. In fact, the more we map the more flexible it is.

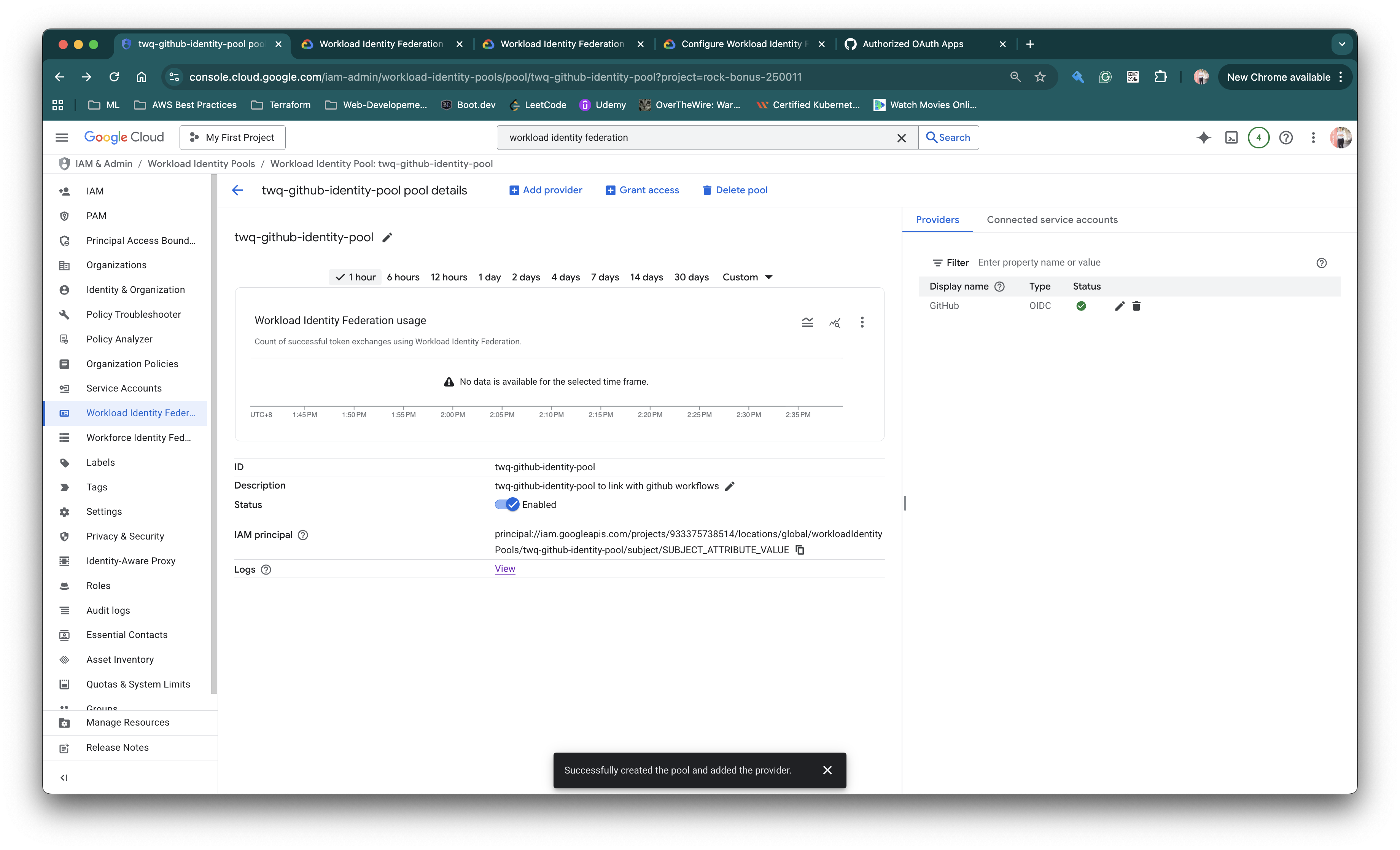

workload-identity-pool-created

Create the service account to be used by Github OIDC

Service account name: github-oidc-sa

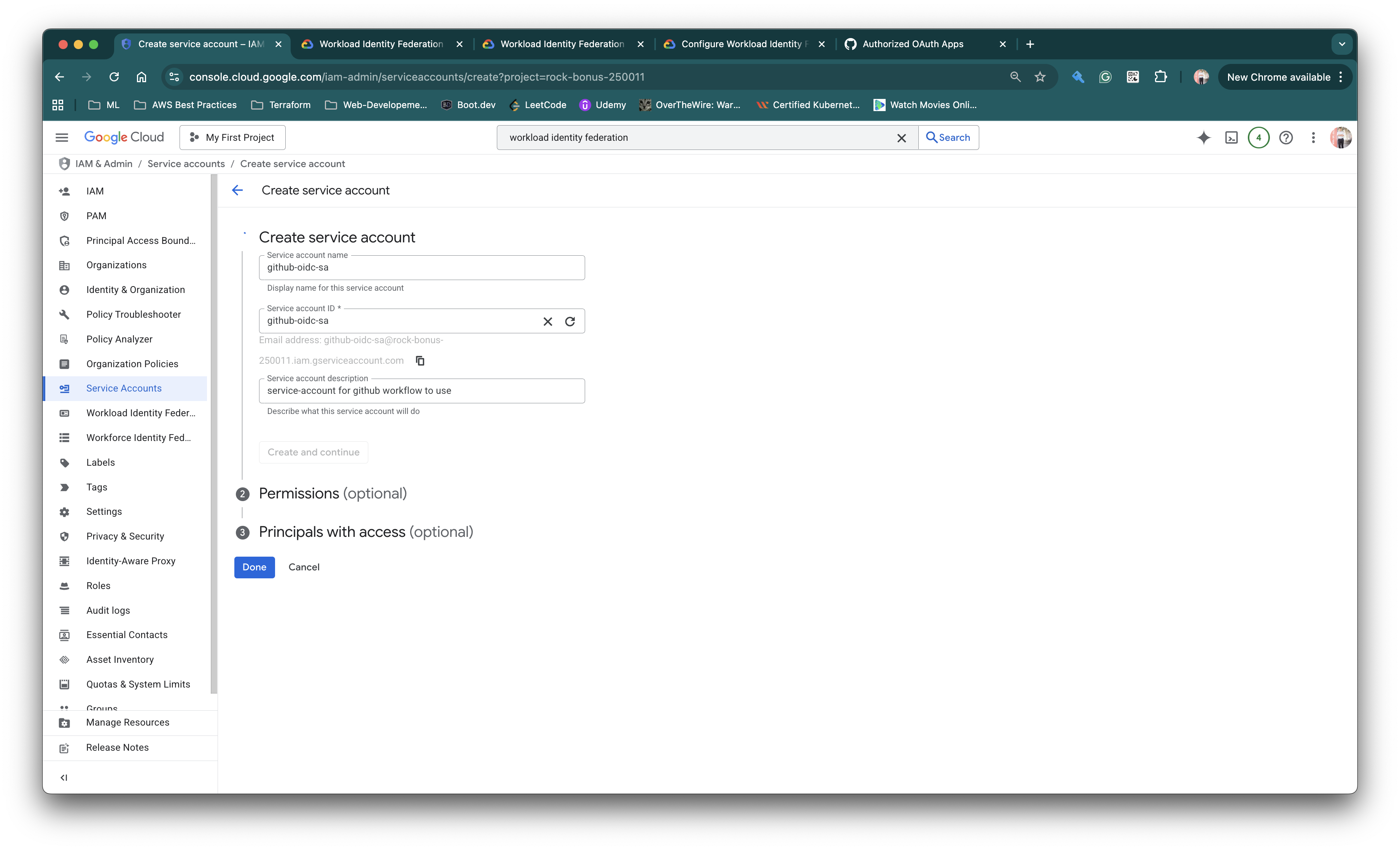

create-service-account

We will give the github-oidc-sa service account to have permissions to these services
```
# Permissions
roles/storage.admin
roles/viewer
```

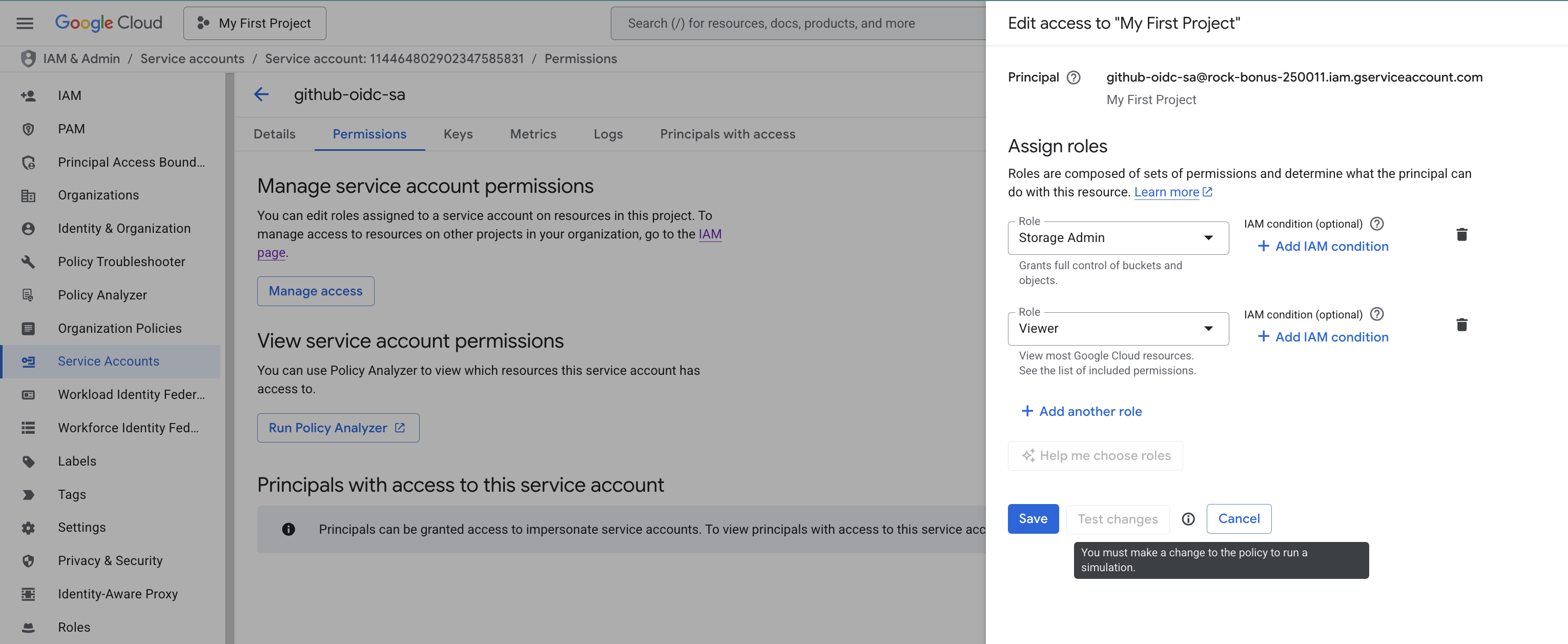

sa-assign-role

gcloud iam service-accounts create "github-oidc-sa" \
  --project "rock-bonus-250011"

gcloud projects add-iam-policy-binding rock-bonus-250011 \
  --member="serviceAccount:github-oidc-sa@rock-bonus-250011.iam.gserviceaccount.com" \
  --role="roles/storage.admin"

gcloud projects add-iam-policy-binding rock-bonus-250011 \
  --member="serviceAccount:github-oidc-sa@rock-bonus-250011.iam.gserviceaccount.com" \
  --role="roles/viewer"

Add the IAM Policy Binding of SA with Github repo

This is the important step as we allow Github OIDC token generated from my Github repo (github-to-gcp-oidc-integration) to access to GCP.
To allow this, we need to grant access via principals from Github

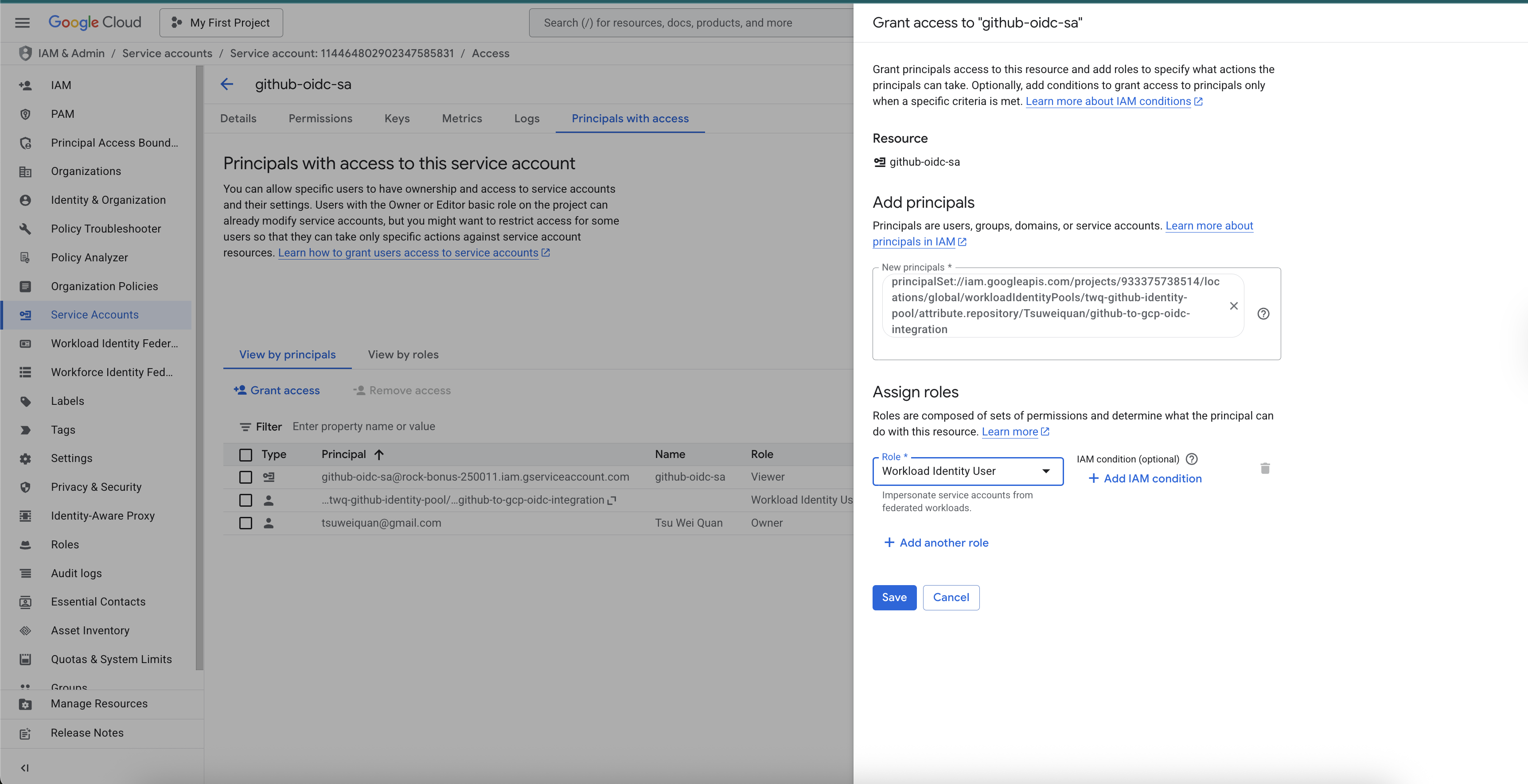

In the Console → Access to your Service account and click Principal with access → Grant access
- It is essential that the principals is setup correctly with the right principalSet and the required assign role is WorkloadIdentityUser

# Obtain your project number via this gcloud command
# gcloud projects describe rock-bonus-250011
# projectNumber: '933375738514'

# Sample gcloud cli
#gcloud iam service-accounts add-iam-policy-binding SERVICE_ACCOUNT_EMAIL \
#  --project="rock-bonus-250011" \
#  --role="roles/iam.workloadIdentityUser" \
#  --member="principalSet://iam.googleapis.com/projects/PROJECT_NUMBER/locations/global/workloadIdentityPools/k8s-pools/attribute.repository/YOUR_GITHUB_ORG/YOUR_REPO

export SERVICE_ACCOUNT_EMAIL="github-oidc-sa@rock-bonus-250011.iam.gserviceaccount.com"

gcloud iam service-accounts add-iam-policy-binding $SERVICE_ACCOUNT_EMAIL \
  --project="rock-bonus-250011" \
  --role="roles/iam.workloadIdentityUser" \
  --member="principalSet://iam.googleapis.com/projects/933375738514/locations/global/workloadIdentityPools/twq-github-identity-pool/attribute.repository/Tsuweiquan/github-to-gcp-oidc-integration"

# The command above will allow Github Repo to impersonate the service account, only from the Tsuweiquan/github-to-gcp-oidc-integration repository defined

Take note Tsuweiquan is case-sensitive.
- Tsuweiquan in this case is the GitHub organization

Want more Fine Grain configurations? such as allowing master branch

# If you want to only allow certain repo and certain branch to allow access to GCP
# Add in --condition attribute
# Example:
gcloud iam service-accounts add-iam-policy-binding $SERVICE_ACCOUNT_EMAIL \
  --project="rock-bonus-250011" \
  --role="roles/iam.workloadIdentityUser" \
  --member="principalSet://iam.googleapis.com/projects/933375738514/locations/global/workloadIdentityPools/twq-github-identity-pool/attribute.repository/Tsuweiquan/github-to-gcp-oidc-integration" \
--condition="expression=attribute.ref=='refs/heads/master',title=only-master-branch"

Set up Github repo to use OIDC

I will be using a test public repo for this.
- https://github.com/Tsuweiquan/github-to-gcp-oidc-integration
- Repo name: github-to-gcp-oidc-integration

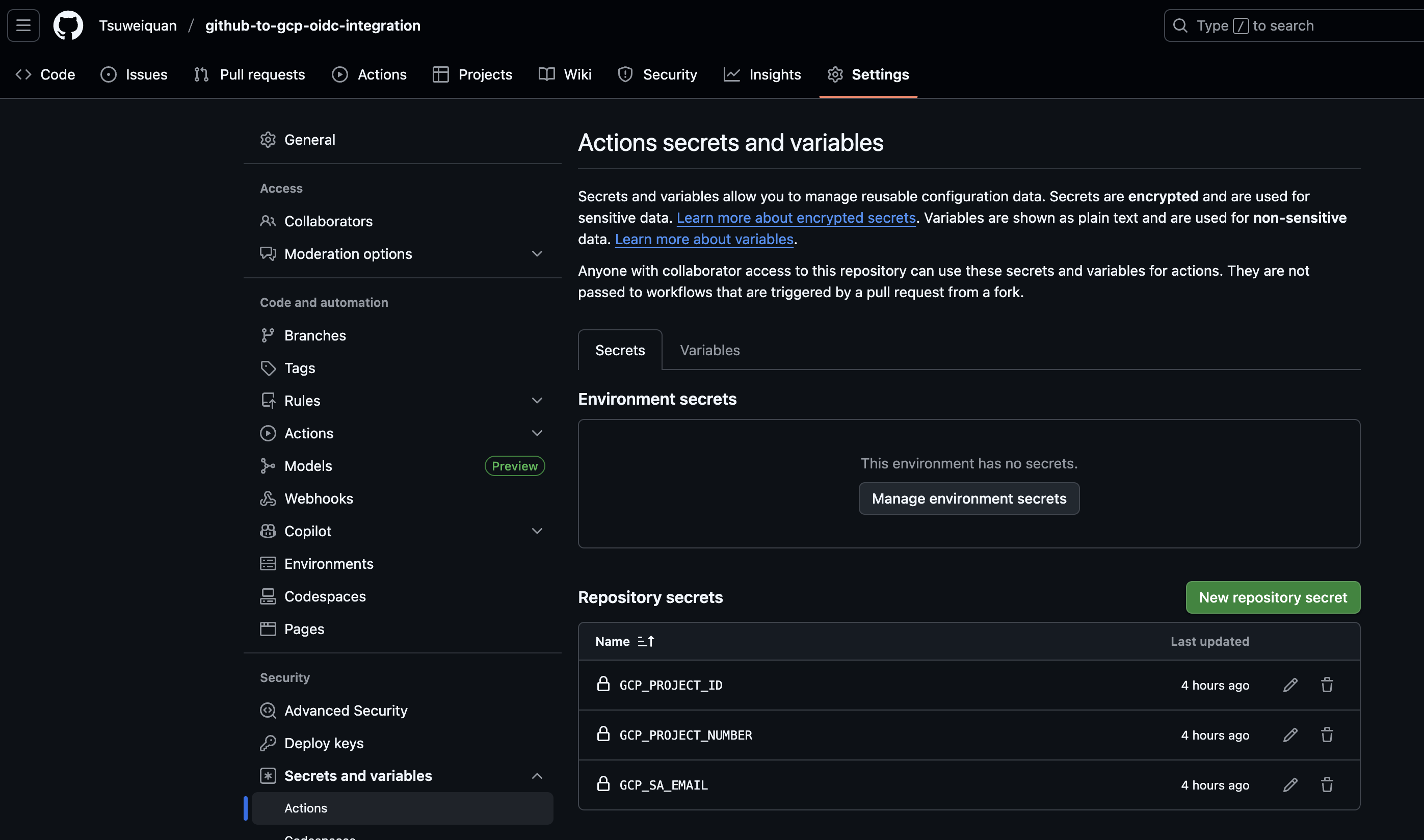

Setup secrets required for this to work
- GCP_PROJECT_ID → rock-bonus-250011
- GCP_PROJECT_NUMBER → 933375738514
  - Run this command to obtain the number:
    - gcloud projects describe rock-bonus-250011
- GCP_SA_EMAIL → github-oidc-sa@rock-bonus-250011.iam.gserviceaccount.com
- Prepare the provider name that was created in the Workload Identity Pools
  - Name: github-provider
  - Run this command to obtain the name if you forget
    gcloud iam workload-identity-pools providers list \ --workload-identity-pool="twq-github-identity-pool" \ --location="global" \ --project="rock-bonus-250011"

Set up GitHub Workflow

A github workflow that can be triggered via pull request or manually via console (workflow_dispatch).

The github workflow will authenticate to GCP via OIDC and use the github-oidc-sa service account to upload and delete object in Google Cloud Storage.

mkdir -p .github/workflows
touch .github/workflows/test-gcp-access.yml

vim .github/workflows/test-gcp-access.yml

name: Test GCP Access

# Allow workflow to run on pull request and manually via console
on:
  pull_request:
  workflow_dispatch:
    inputs:
      branch:
        description: 'Branch to run the workflow on'
        required: true
        default: 'master'

env:
  GCP_PROJECT_ID: $
  GCP_PROJECT_NUMBER: $
  GCP_WORKLOAD_IDENTITY_POOL: "twq-github-identity-pool"
  GCP_WORKLOAD_IDENTITY_PROVIDER: "projects/$/locations/global/workloadIdentityPools/twq-github-identity-pool/providers/github-provider"
  GCP_SA_EMAIL: $
  GCP_TEST_BUCKET: "tsuweiquan-test-gcp-bucket"

jobs:
  test-gcp-access:
    name: Test GCP Access
    runs-on: ubuntu-latest

    permissions:
      contents: 'read'
      id-token: 'write'

    steps:
    - name: Checkout code
      uses: actions/checkout@v4

    - name: Authenticate to GCP
      id: gcp-auth
      uses: 'google-github-actions/auth@v3'
      with:
        project_id: $
        workload_identity_provider: $
        service_account: $
        create_credentials_file: true
        export_environment_variables: true

    - name: Show gcp-auth step outputs
      run: |
        echo "GCP_PROJECT_ID: $"
        echo "GCP_ID_TOKEN: $"
        echo "GCP_AUTH_TOKEN: $"

    - name: 'Set up Cloud SDK'
      uses: 'google-github-actions/setup-gcloud@v3.0.1'

    - name: 'Use gcloud CLI'
      run: |
        echo "Testing access..."
        gcloud auth list
        epoch_timestamp=$(date +%s)
        touch /tmp/date-$epoch_timestamp.txt
        ls /tmp/date-$epoch_timestamp.txt
        echo "Uploading test file to GCS bucket..."
        gcloud storage cp /tmp/date-$epoch_timestamp.txt gs://$/date-$epoch_timestamp.txt
        echo "Listing test file in GCS bucket..."
        gsutil ls gs://tsuweiquan-test-gcp-bucket
        echo "Deleting test file in GCS bucket..."
        gsutil rm gs://tsuweiquan-test-gcp-bucket/date-$epoch_timestamp.txt
        echo "GCP access test completed successfully."

Pipeline Example: https://github.com/Tsuweiquan/github-to-gcp-oidc-integration/actions/runs/18816543613/job/53686211799

Working Setup in master

https://github.com/Tsuweiquan/github-to-gcp-oidc-integration/actions/workflows/test-gcp-access.yml

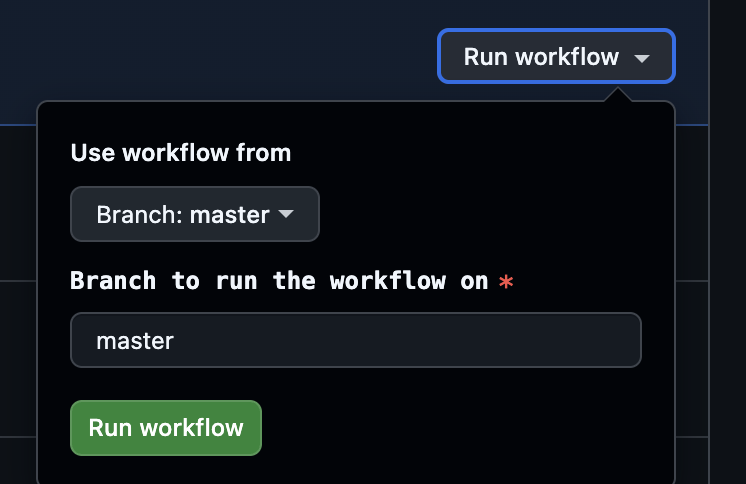

- Click on Run workflow
Pipeline will start at https://github.com/Tsuweiquan/github-to-gcp-oidc-integration/actions/runs/18816894797/job/53686501812

Common Errors

If gcp-auth step is successful via marketplace actions ('google-github-actions/auth@v3’) and gcloud commands returns 403 with such error below

ERROR: (gcloud.storage.cp) There was a problem refreshing your current auth tokens: ('Unable to acquire impersonated credentials', '{\n  "error": {\n    "code": 403,\n    "message": "Permission \'iam.serviceAccounts.getAccessToken\' denied on resource (or it may not exist).",\n    "status": "PERMISSION_DENIED",\n    "details": [\n      {\n        "@type": "type.googleapis.com/google.rpc.ErrorInfo",\n        "reason": "IAM_PERMISSION_DENIED",\n        "domain": "iam.googleapis.com",\n        "metadata": {\n          "permission": "iam.serviceAccounts.getAccessToken"\n        }\n      }\n    ]\n  }\n}\n')

Solution:

There’s a high probability it’s due to
- GCP_WORKLOAD_IDENTITY_PROVIDER variable set wrongly.
  - Please check the project number is correct
  - Please check the workload identity pool name is correct, can be case sensitive
  - Please check the provider name is correct, can be case sensitive
- Provider’s Attribute mapping was set wrongly
  - Please check that attribute.aud → assertion.aud is set correctly
  - Please check that attribute.repository → assertion.repositryo is set correctly
- Provider’s Attribute conditions
  - Please check that the attribute condition is correct
    - use assertion.sub != "" to cover all cases

The given credential is rejected by the attribute condition

Error: google-github-actions/auth failed with: failed to generate Google Cloud federated token for //iam.googleapis.com/projects/***/locations/global/workloadIdentityPools/twq-github-identity-pool/providers/github-provider: {"error":"unauthorized_client","error_description":"The given credential is rejected by the attribute condition."}
